WSERD30B 1/30

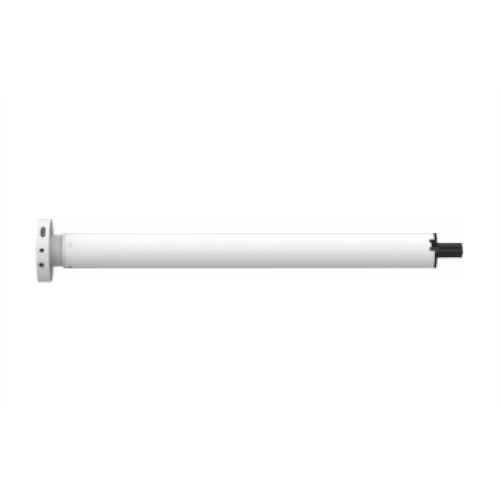

1 Nm rechargeable battery motor for roller shades, just 18 inches long.
An ultra-quiet short motor with coreless technology. It lifts a shade up to 6.5 ft high × 6.5 ft wide and charges through a USB-C port with the Alpha ALDC charger.
Control it with Alpha remotes or the Alpha-Neo App. A 7.9 in charging tail is available in case the motor head is hard to reach after installation, and the TYB004 solar panel is an option.
Features
- Built-in rechargeable lithium battery
- USB-C charging port · ALDC charger required (13 ft cable included; 10 ft extension available)
- Electronic limit switch and built-in receiver
- 3rd intermediate limit position
- Adjustable speed
- Patented coreless technology · ultra-quiet
- No aerials
- Alpha-Neo App control
- Warranty: 1 year from installation
Specifications
- Rated torque
- 1 Nm
- Output speed
- 30 rpm
- Nominal consumption
- 16.3 W
- Nominal current
- 1.5 A
- Protection index
- IP20
- Total length
- 18.1 in
- Net weight
- 1.05 lb
- Max lifting capacity
- 6.5 × 6.5 ft
- Storage temperature
- -4°F to 149°F
