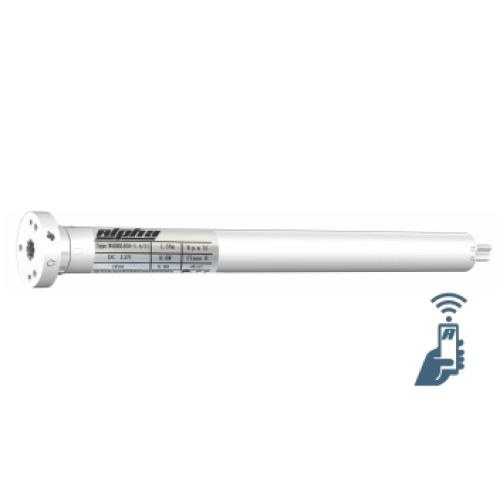

WSERD30B 2/31
2 Nm rechargeable battery motor for internal roller shades.
Internal lithium batteries last between 6 and 8 months between charges, depending on use. Its coreless DC drive is more efficient and quieter than standard battery motors.
The motor manages its own charging: it shows when it needs a charge and when it is done, and it cannot be overcharged. The charger plugs straight into the motor head, so there is no charging cable in sight.
Features
- Built-in rechargeable lithium battery
- Electronic limit switch and built-in receiver
- Fits roller tubes from 30 to 50 mm in diameter
- ALDC charger required (13 ft cable; 10 ft cable also available)
Specifications
- Rated torque
- 2 Nm
- Output speed
- 31 rpm
- Nominal consumption
- 16.3 W
- Nominal current
- 1.3 A
- Protection index
- IP20
- Total length
- 20.6 in
- Net weight
- 1.2 lb
- Max lifting capacity
- 9.8 × 9.8 ft
- Storage temperature
- -4°F to 149°F
